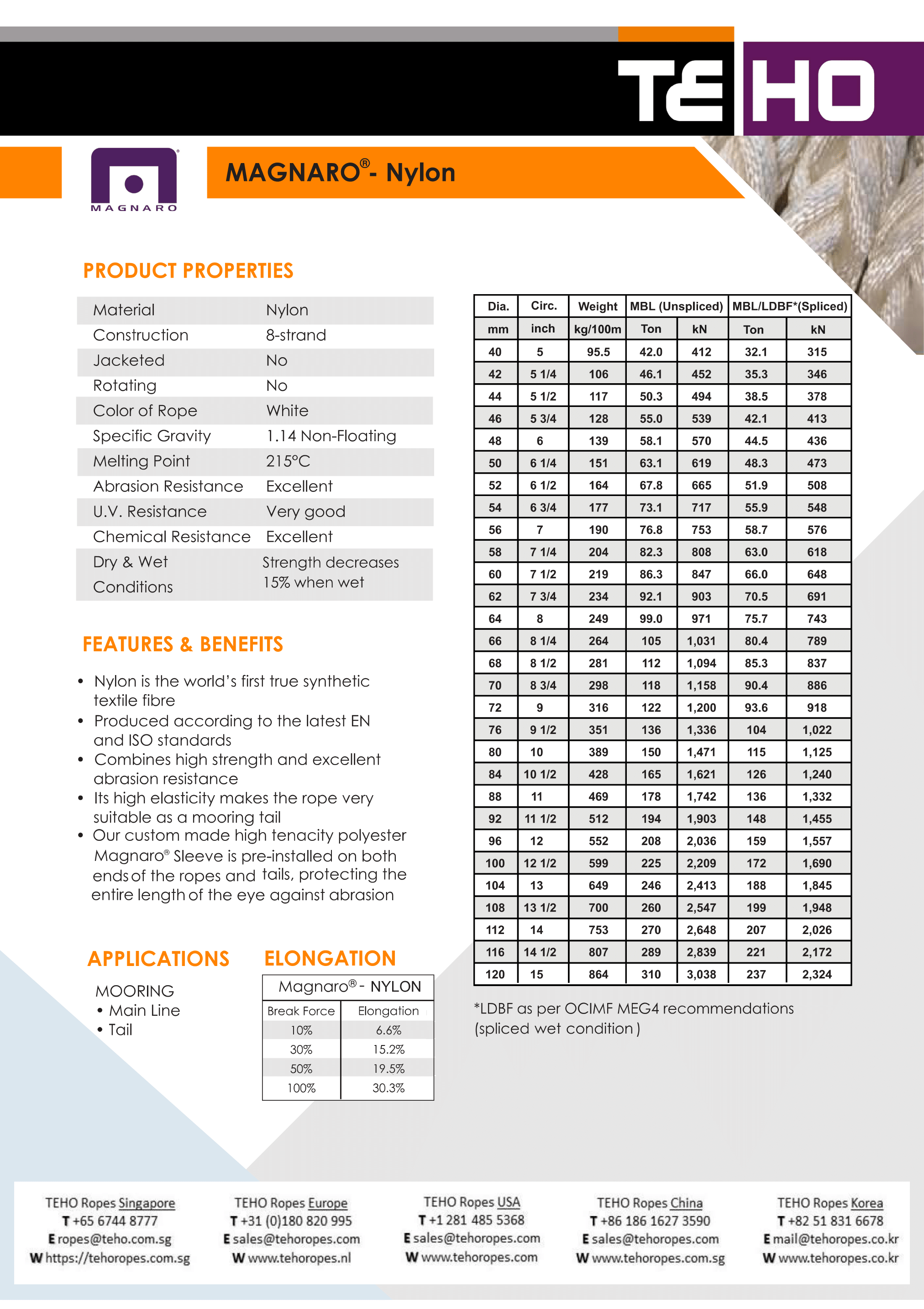

MAGNARO® Nylon
Nylon was the world’s first true synthetic textile fibre. Our MAGNARO® Nylon mooring rope can be used for all purposes and are produced according to the latest EN and ISO standards.
It combines high (dry) strength and excellent abrasion resistance. Its high elasticity makes the rope very suitable as a mooring tail.
- Nylon is the world’s first true synthetic textile fibre
- Can be used for all purposes
- Produced according to the latest EN and ISO standards
- Combines high strength and excellent abrasion resistance
- Its high elasticity makes the rope very suitable as a mooring tail
product properties
Specifications
| Material | Nylon |
|---|---|
| Construction | 8-strand |
| Jacketed | No |
| Rotating | No |
| Color of rope | White |
| Specific gravity | 1.14 (non-floating) |
| Melting point | 215 °C |
| Abrasion resistance | Excellent |
| U.V. resistance | Very good |
| Chemical resistance | Excellent |
| Dry & wet conditions | Strength decreases 15% when wet |
Sizes and breaking loads
| Dia. (mm) | Circ. (inch) | Weight (kg/100m) | MBL (unspliced) | MBL/LDBF* (spliced) | ||
|---|---|---|---|---|---|---|
| Ton | kN | Ton | kN | |||
| 40 | 5 | 95.5 | 42.0 | 412 | 32.1 | 315 |
| 42 | 5 1/4 | 106 | 46.1 | 452 | 35.3 | 346 |
| 44 | 5 1/2 | 117 | 50.3 | 494 | 38.5 | 378 |
| 46 | 5 3/4 | 128 | 55.0 | 539 | 42.1 | 413 |
| 48 | 6 | 139 | 58.1 | 570 | 44.5 | 436 |
| 50 | 6 1/4 | 151 | 63.1 | 619 | 48.3 | 473 |
| 52 | 6 1/2 | 164 | 67.8 | 665 | 51.9 | 508 |
| 54 | 6 3/4 | 177 | 73.1 | 717 | 55.9 | 548 |
| 56 | 7 | 190 | 76.8 | 753 | 58.7 | 576 |
| 58 | 7 1/4 | 204 | 82.3 | 808 | 63.0 | 618 |
| 60 | 7 1/2 | 219 | 86.3 | 847 | 66.0 | 648 |
| 62 | 7 3/4 | 234 | 92.1 | 903 | 70.5 | 691 |
| 64 | 8 | 249 | 99.0 | 971 | 75.7 | 743 |
| 66 | 8 1/4 | 264 | 105 | 1,031 | 80.4 | 789 |
| 68 | 8 1/2 | 281 | 112 | 1,094 | 85.3 | 837 |
| 70 | 8 3/4 | 298 | 118 | 1,158 | 90.4 | 886 |
| 72 | 9 | 316 | 122 | 1,200 | 93.6 | 918 |
| 76 | 9 1/2 | 351 | 136 | 1,336 | 104 | 1,022 |
| 80 | 10 | 389 | 150 | 1,471 | 115 | 1,125 |
| 84 | 10 1/2 | 428 | 165 | 1,621 | 126 | 1,240 |
| 88 | 11 | 469 | 178 | 1,742 | 136 | 1,332 |
| 92 | 11 1/2 | 512 | 194 | 1,903 | 148 | 1,455 |
| 96 | 12 | 552 | 208 | 2,036 | 159 | 1,557 |
| 100 | 12 1/2 | 599 | 225 | 2,209 | 172 | 1,690 |
| 104 | 13 | 649 | 246 | 2,413 | 188 | 1,845 |
| 108 | 13 1/2 | 700 | 260 | 2,547 | 199 | 1,948 |
| 112 | 14 | 753 | 270 | 2,648 | 207 | 2,026 |
| 116 | 14 1/2 | 807 | 289 | 2,839 | 221 | 2,172 |
| 120 | 15 | 864 | 310 | 3,038 | 237 | 2,324 |
* LDBF as per OCIMF MEG4 recommendations (spliced wet condition).
Elongation
| Break force | Elongation |
|---|---|
| 10% | 6.6% |
| 30% | 15.2% |
| 50% | 19.5% |
| 100% | 30.3% |
