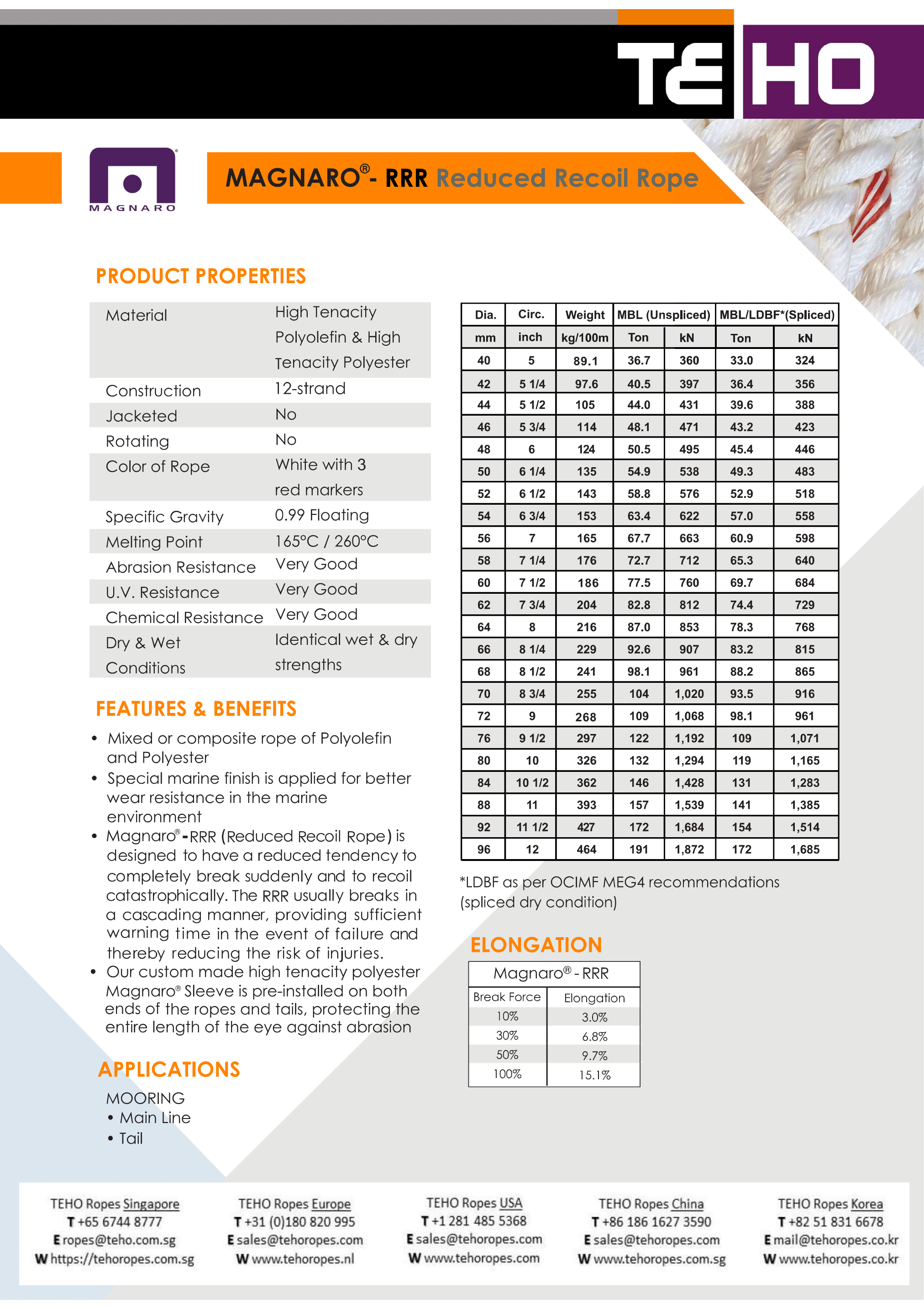

MAGNARO® RRR - ANTI SNAP BACK
MAGNARO® RRR is a revolutionary composite rope made from high tenacity polyolefin and high-performance polyester. This snap back rope undergoes a special marine finish to significantly enhance its wear resistance in harsh marine environments.
MAGNARO® RRR offers excellent abrasion resistance and exceptional strength. Its buoyancy and superior handling characteristics make it the ideal mooring rope for all types of ships, providing reliability and safety in every use.
The MAGNARO® RRR (Reduced Recoil Rope) is engineered to minimize the risk associated with snap back, a dangerous occurrence during mooring operations. Unlike traditional ropes, the RRR is designed to break in a cascading manner, providing critical warning time before a complete failure. This snap back rope feature significantly reduces the risk of catastrophic recoil and subsequent injuries, making it a safer choice for maritime applications.
product properties
Specifications
| Material | High tenacity polyolefin & high tenacity polyester |
|---|---|
| Construction | 12-strand |
| Jacketed | No |
| Rotating | No |
| Color of rope | White with 3 red markers |
| Specific gravity | 0.99 (floating) |
| Melting point | 165 °C / 260 °C |
| Abrasion resistance | Very good |
| U.V. resistance | Very good |
| Chemical resistance | Very good |
| Dry & wet conditions | Identical wet & dry strengths |
Sizes and breaking loads
| Dia. (mm) | Circ. (inch) | Weight (kg/100m) | MBL (unspliced) | MBL/LDBF* (spliced) | ||
|---|---|---|---|---|---|---|
| Ton | kN | Ton | kN | |||
| 40 | 5 | 89.1 | 36.7 | 360 | 33.0 | 324 |
| 42 | 5 1/4 | 97.6 | 40.5 | 397 | 36.4 | 356 |
| 44 | 5 1/2 | 105 | 44.0 | 431 | 39.6 | 388 |
| 46 | 5 3/4 | 114 | 48.1 | 471 | 43.2 | 423 |
| 48 | 6 | 124 | 50.5 | 495 | 45.4 | 446 |
| 50 | 6 1/4 | 135 | 54.9 | 538 | 49.3 | 483 |
| 52 | 6 1/2 | 143 | 58.8 | 576 | 52.9 | 518 |
| 54 | 6 3/4 | 153 | 63.4 | 622 | 57.0 | 558 |
| 56 | 7 | 165 | 67.7 | 663 | 60.9 | 598 |
| 58 | 7 1/4 | 176 | 72.7 | 712 | 65.3 | 640 |
| 60 | 7 1/2 | 186 | 77.5 | 760 | 69.7 | 684 |
| 62 | 7 3/4 | 204 | 82.8 | 812 | 74.4 | 729 |
| 64 | 8 | 216 | 87.0 | 853 | 78.3 | 768 |
| 66 | 8 1/4 | 229 | 92.6 | 907 | 83.2 | 815 |
| 68 | 8 1/2 | 241 | 98.1 | 961 | 88.2 | 865 |
| 70 | 8 3/4 | 255 | 104 | 1,020 | 93.5 | 916 |
| 72 | 9 | 268 | 109 | 1,068 | 98.1 | 961 |
| 76 | 9 1/2 | 297 | 122 | 1,192 | 109 | 1,071 |
| 80 | 10 | 326 | 132 | 1,294 | 119 | 1,165 |
| 84 | 10 1/2 | 362 | 146 | 1,428 | 131 | 1,283 |
| 88 | 11 | 393 | 157 | 1,539 | 141 | 1,385 |
| 92 | 11 1/2 | 427 | 172 | 1,684 | 154 | 1,514 |
| 96 | 12 | 464 | 191 | 1,872 | 172 | 1,685 |
* LDBF as per OCIMF MEG4 recommendations (spliced dry condition).
Elongation
| Break force | Elongation |
|---|---|
| 10% | 3.0% |
| 30% | 6.8% |
| 50% | 9.7% |
| 100% | 15.1% |
Comprehensive solution for maritime safety
The MAGNARO® RRR, our answer to the well-known SBA (Snap Back Arrestor) rope, represents the forefront of safety in mooring technology. In the maritime industry, ensuring the safety of crew and equipment is paramount. The introduction of anti-snap back technology, particularly in the form of Reduced Recoil Ropes, marks a significant advancement in this field.
Why Choose MAGNARO® RRR snap back rope?
- Enhanced safety: Designed to mitigate the dangers of sudden rope failure, the MAGNARO® RRR breaks gradually, reducing the risk of snap back injuries.
- High performance: Combining high tenacity polyolefin and high-performance polyester, this snap back rope offers unmatched strength and durability.
- Marine-optimized finish: The special marine finish applied to the rope enhances its resistance to abrasion and wear, even in the toughest marine conditions.
- Versatility: Ideal for all types of ships, its buoyant and easy-to-handle nature ensures it meets the diverse needs of the maritime industry.
By choosing MAGNARO® RRR, you are investing in a product that prioritizes safety without compromising on performance. Whether you’re operating in commercial shipping, offshore platforms, or coastal navigation, the MAGNARO® RRR provides a reliable and secure solution to your mooring needs.
Explore the benefits of our Reduced Recoil Rope and see why it stands out as a superior alternative to traditional snap back ropes. Our commitment to innovation and safety ensures that MAGNARO® RRR meets and exceeds industry standards, providing peace of mind for maritime professionals.
